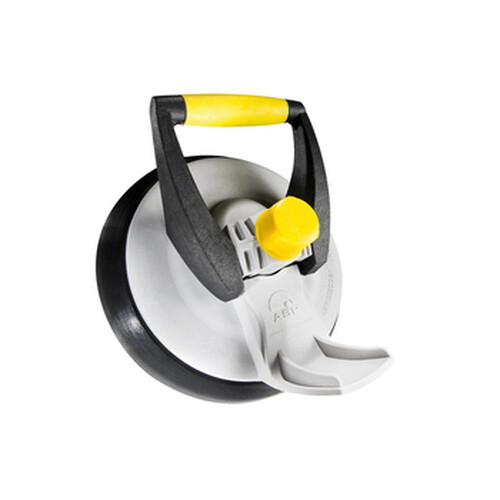

CAMSTOPPER® - Cam test plug and pipe stopper

Specifications


The CAMSTOPPER® "CAM" stopper is a very clever device!

Equipped with a patented, innovative cam handle system, which locks the stopper into position with one motion, CAMSTOPPER® is undoubtedly the easiest and quickest stopper to fit and remove.

  • It can be installed and removed from a distance using the "RALCAM" adapted telescopic system, the CAMSTOPPER® CAM stopper also provides the best security and best comfort for the operator who no longer has to go down into the manhole to block off the network.
  • Extremely ergonomic, CAMSTOPPER® CAM is fitted with a thrust bearing that prevents the stopper from rotating in the pipeline and facilitates installation and a 1/2” by-pass (that enables simple connection to all standard plumbing to divert the flow).

CAMSTOPPER® CAM is designed for:

  • a temporary or permanent blocking of pipelines with DNs 90 to 150 mm (for larger DNs see the "PRO" or "PRO SPC" ranges),
  • use under pressures between 0.3 and 0.5 bar.


The CAMSTOPPER® mechanical cam stopper is manufactured from nylon and EPDM in accordance with BS EN 681-1.

NameExtensionWeight
PRODUCT CERTIFICATE WRC OBTURATEURS CAMSTOPPER CAMpdf221.97 Ko  Download
ASSESSMENT SCHEDULE CAMSTOPPER CAM PT 407 NORHAMpdf31.85 Ko  Download

INSTALLATION / APPLICATION

As for installing the CAMSTOPPER® stopper, nothing could be easier!

  • norham-photo-studio-obturateurs-CAMSTOPPER-montage-1.jpg
    1- Insert the stopper into the pipeline and position it using the thrust bearing
  • norham-photo-studio-obturateurs-CAMSTOPPER-montage-3.jpg
    2- Lower the handle to lock the stopper in place
  • norham-photo-studio-obturateurs-CAMSTOPPER-montage-4.jpg
    3- Attach a rope to the handle with a snap hook
  • norham-photo-studio-obturateurs-CAMSTOPPER-montage-5.jpg
    4- To remove the stopper, simply pull on the rope
  • It is also possible to install and remove the CAMSTOPPER® CAM
  • norham-photo-studio-obturateurs-CAMSTOPPER-CAM-rallonge.jpg
    with a telescopic extension rod of up to 3 meters!

DIMENSIONS

RefDescriptionTolerances (mm)Ps (bar)
CAM090Patented "Original" CAMSTOPPER®90 - 970,5
CAM100Patented "Original" CAMSTOPPER®96 - 1030,5
CAM105Patented "Original" CAMSTOPPER®102 - 1070,5
CAM110Patented "Original" CAMSTOPPER®108 - 1120,5
CAM120Patented "Original" CAMSTOPPER®116 - 1230,5
CAM130Patented "Original" CAMSTOPPER®125 - 1320,5
CAM140Patented "Original" CAMSTOPPER®136 - 1420,5
CAM145Patented "Original" CAMSTOPPER®144 - 1490,5
CAM150Patented "Original" CAMSTOPPER®147 - 1530,5
CAM160Patented "Original" CAMSTOPPER®157 - 1620,5
CAMSTOPPER® - PLUG AND PIPE STOPPER [pdf] - 1.08 Mo
