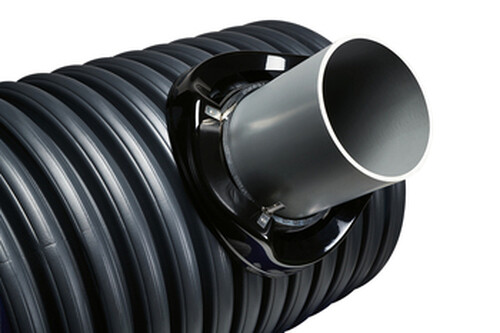

Multimaterial T-SADDLE MULTI

CHARACTERISTICS

T-SADDLE MULTI is a multi-material T-Saddle, intended for all gravity flow networks (rainwater or sewage), it works with :

It’s an « all-in-one » solution : thanks to his patented system, one reference for several main pipes (NORHAM Patent No. 3324093).

Materials :

upper and lower saddle : polyester isophthalic resin reinforced with glass fibers ;
clamp and locking system : 304 stainless steel ;
body : EPDM compact 60 Sh with additional foam seal.

The T-SADDLE MULTI meets the requirements of NF EN 476 :

All in oneThanks to its patented system, one reference for several main pipes (European patent No. 3324093).

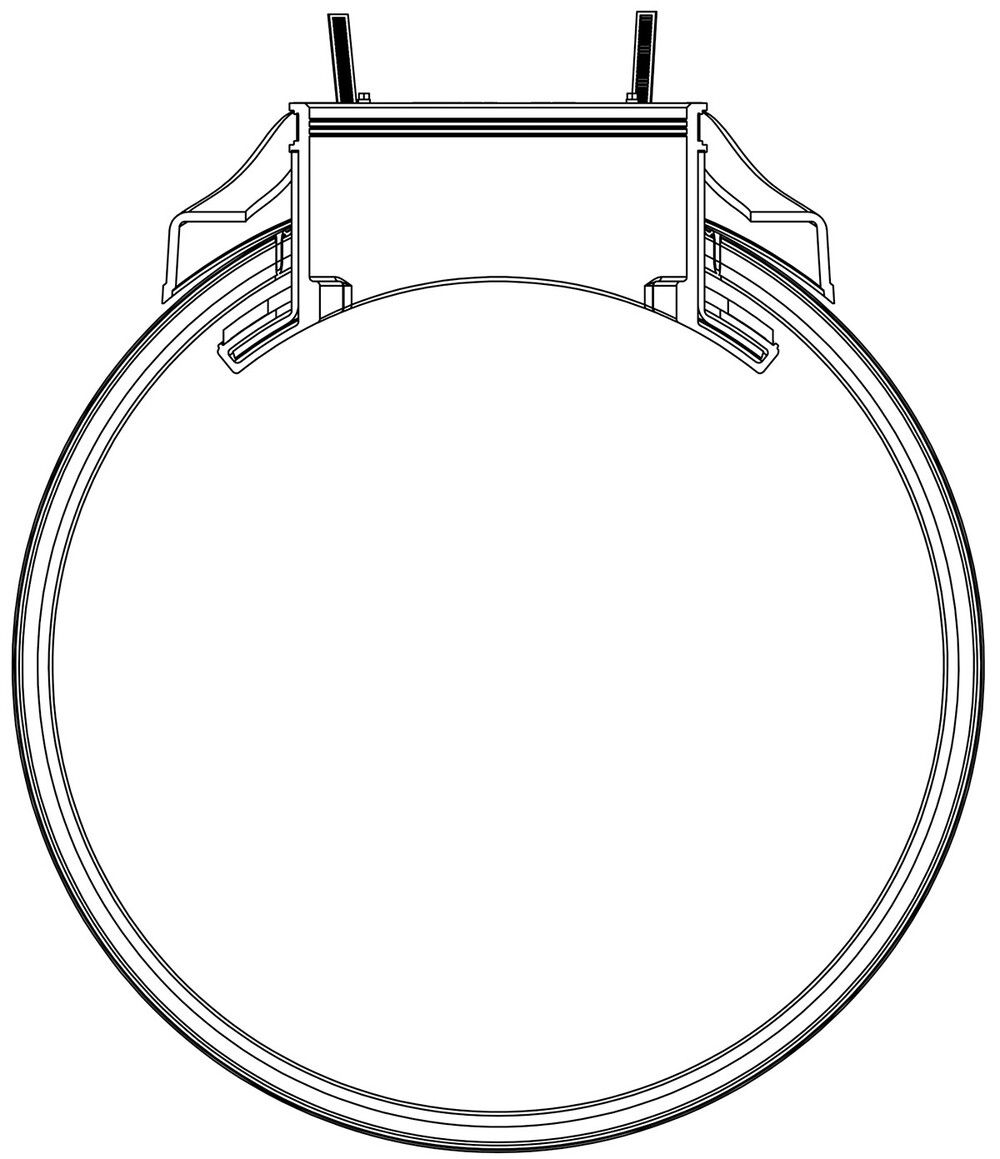

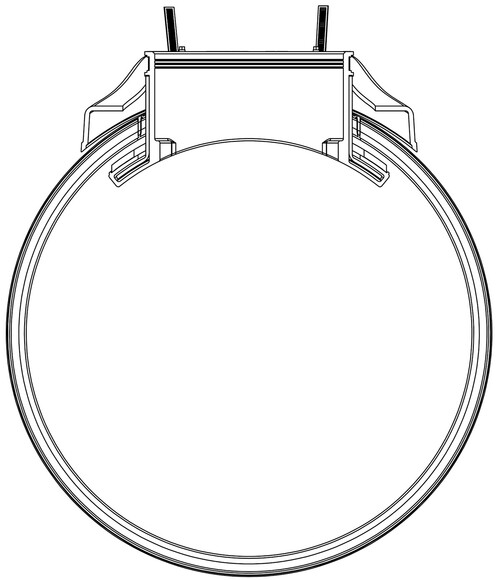

Non-through system in the main pipeReduced dimensions. Drilling tolerance of 0/+10mm compared to the nominal diameter drilling (320-330 mm for the TF250MULTI).
Watertightness systemMade by a foam seal on the inner wall of the main (principle of the "pressure cooker").
Easy to installHolding and centering tabs of the T-SADDLE MULTI in the collector during assembly.
Locking system with perforated bandsAdapted to all thicknesses of mains up to 70 mm thick.
Multimaterial outlet with stopThanks to flexible couplings multimaterial connection technology.

Tools needed (Not included) :

1. Drill and check the drilling Ø and the good condition of the inner surface of the main.
2. Locate the
3. Fold the lower saddle in half and insert it into the main.
4. Reassemble the lower saddle in the drilling.
5. Align the lower saddle with the markers and center it of the saddle.
6. Place the upper saddle on the lower saddle and insert the clamping bands into the heads (with a screwdriver).
7. Screw alternatively the heads of the locking system (by steps of 3 cm) up to a 3 to 5 Nm torque.
8. Fold the handles in the closed position. The T-SADDLE MULTI is perfectly in place.
9. Make a mark 120 mm from the end of the sewer pipe.
10. Insert the outlet pipe as it will go and tighten the clamp (10 Nm).
