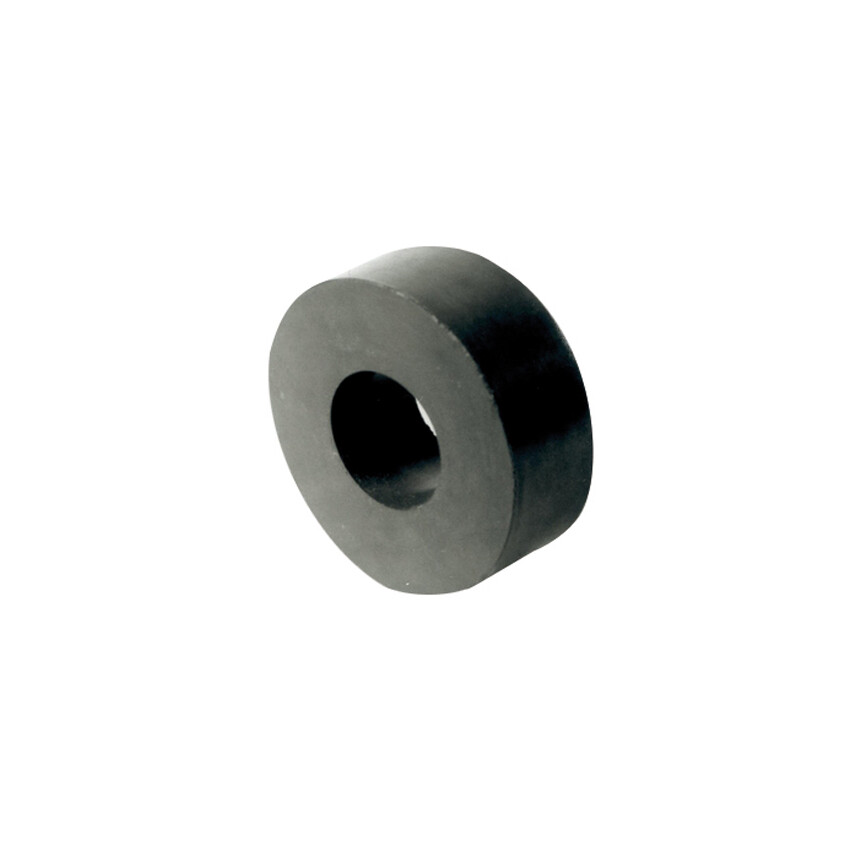

Reduction Ring MB

Specifications


The MB rubber reducing rings are used in conjunction with the range of ML sleeves or elbow bends and NORHAM’s T MTY couplings.

They serve to further increase the number of connection combinations by reducing the internal diameter of one side of the coupling or by increasing the external diameter of a pipe.

The MB rings are available in diameters from 32 to 115 mm.

Installation

  • Slide the MB ring to the end of the smallest pipe and the NORHAM Flexible Fittings for plumbing systems onto the largest pipe.
  • Bring the two pipes as close together as possible and slide the coupling onto the ring.
  • Tighten the fastenings of the coupling until they are locked.

Dimensions

RefDimensions ML/MTYO.D.I.D.
MB150-3240-514832
MB200-3255-636032
MB200-4055-636040
MB200-5055-636050
MB300-6082-928860
MB400-50107-11711550
MB400-100107-117115100
Certifications Iso 9001-2015
