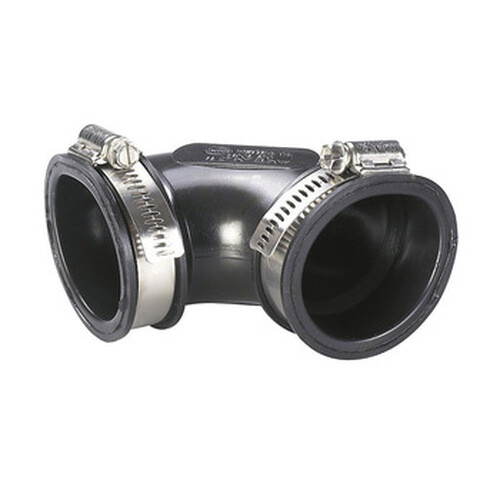

NORHAM ML Elbow bends
Specifications
The 90° plasticised PVC and 304 stainless steel "ML" elbow bends from the FLEX-FIT® range are designed for connecting pipes to one another, without adhesive, using a common screwdriver; all while ensuring that your connection is perfectly watertight.
Available from DN 40 to DN 100 mm, they are ideally suited for plumbing and drainage systems.
The FLEX-FIT® ML elbow bend can be buried or conversely, laid above ground.
The 90° plasticised PVC and grade 1.4301 (304) stainless steel "ML" elbow bends are designed for connecting pipes to one another, using only a standard screwdriver; all while ensuring that your connection is perfectly watertight.
Available from DN 40 to DN 100 mm, they are ideally suited for plumbing and drainage systems.
The FLEX-FIT® ML elbow bend can be buried or conversely, laid above ground.
INSTALLATION
The 90° ML coupling is so easy to install that anyone can do it.
Simply insert the pipes into the elbow bend and tighten the fastenings. No need for adhesive.
The tightening of the fastening ensures the connection is watertight.
DIMENSIONS
Ref | Angle | Size Range Side A | Size range Side B |
---|---|---|---|
M90L150 | 90° | 40-51 | 40-51 |
M45L200 | 45° | 55-63 | 55-63 |
M90L200 | 90° | 55-63 | 55-63 |
M90L300 | 90° | 82-92 | 82-92 |
M90L400 | 90° | 107-117 | 107-117 |
